We've slimmed down every element of its bigger brother (R185CCSL) to create a lightweight, compact and robust 165mm multi-material cutting saw without compromising on cutting performance, power, and versatility.

Features

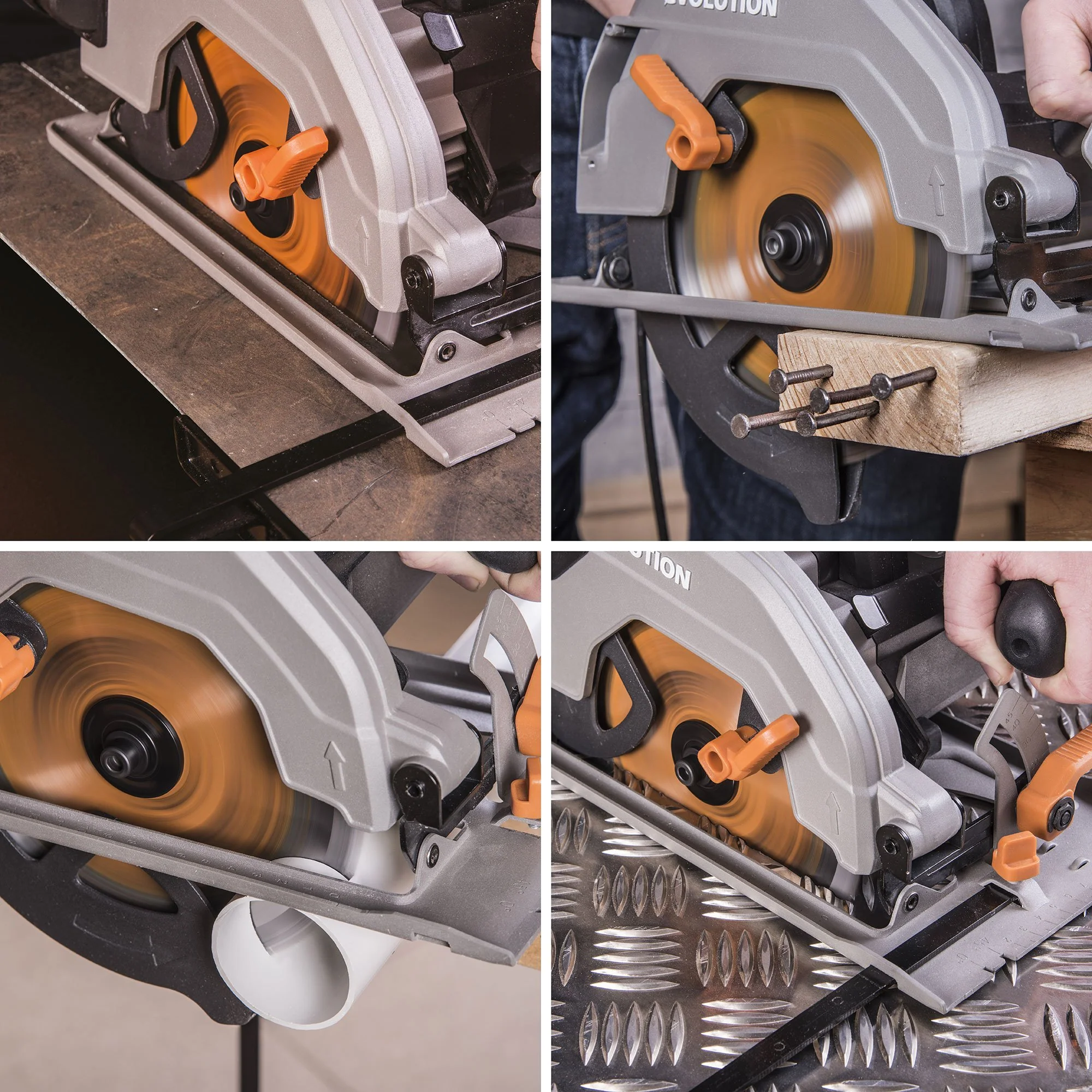

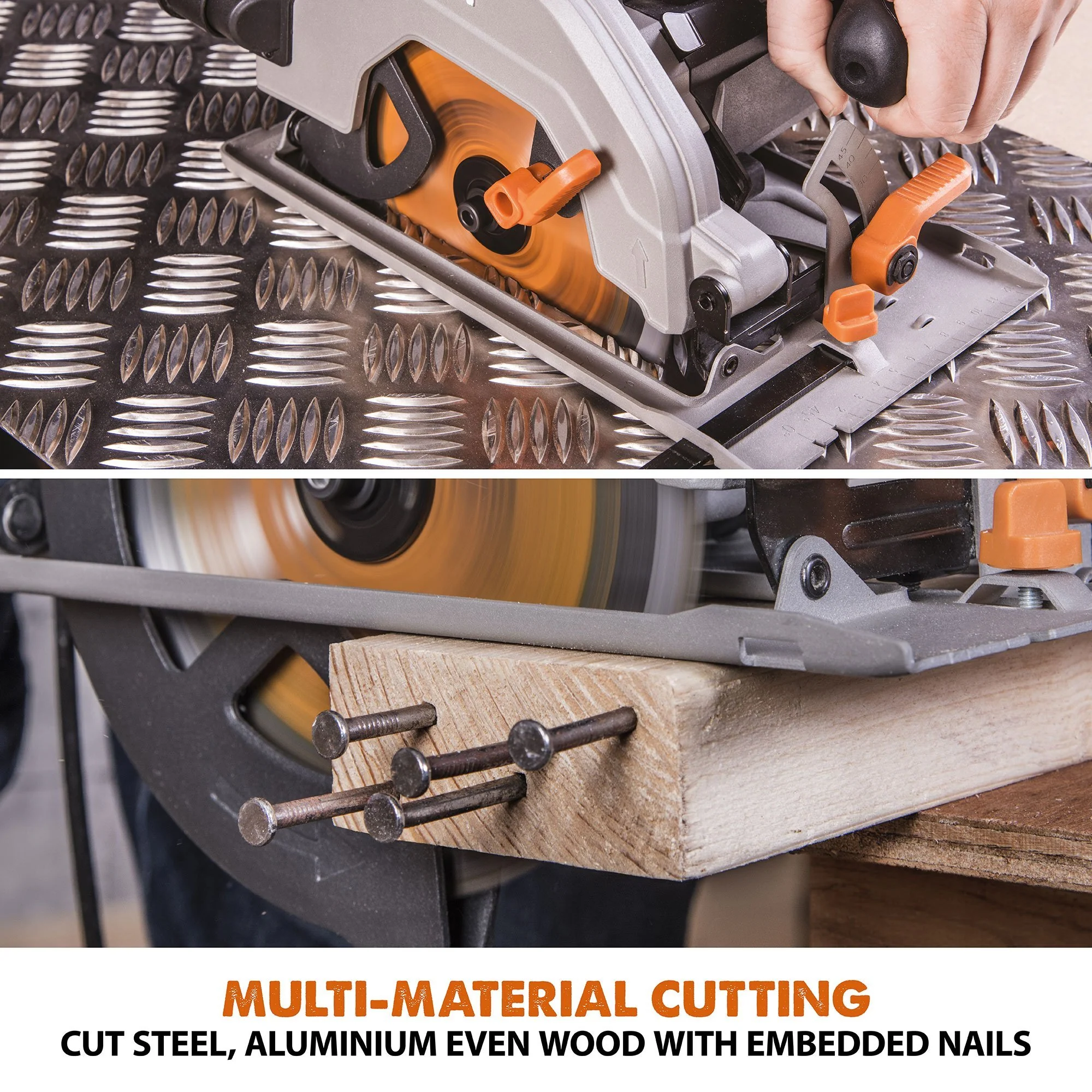

• Multi-Material cutting technology. One saw, one blade, cuts all.*

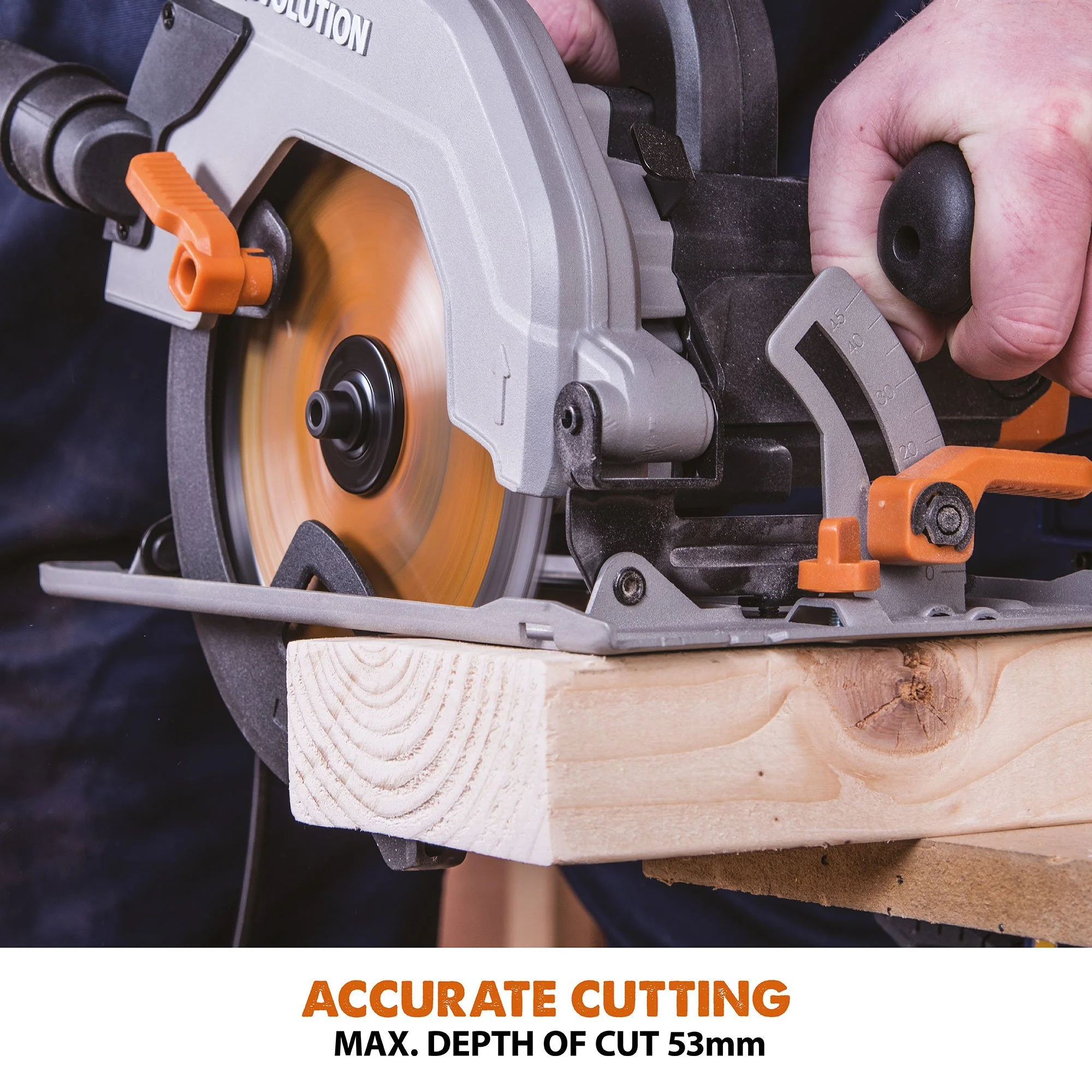

• Accurate cutting with adjustable 53mm depth of cut.
• Reliable smooth square cutting every time in a variety of materials.
• Powerful 1200W hi-torque motor with optimized gearbox & blade system.
• 0° - 45° bevel tilt cuts angles accurately & easily.
• Channeled airflow & base indicators ensure optimum visibility of your cutting line.
• Ergonomic 'T' Shape Handle provides optimum control & precision.
• Dust extraction port & adaptor included for vacuum compatibility.
• Compact, lightweight & robust design, weighing only 4.3kg.
• Japanese Tungsten-Carbide-Tipped (TCT) 165mm blade included.

Specifications

Motor (110V 50Hz):	1200W
Motor (240V 50Hz):	1200W
Speed No Load:	3700 rpm
Max. Bevel (Left):	45°
Circular Saw Base:	Pressed Steel
Cable Length:	3m
Blade Dia.:	165mm
No. of Teeth:	14
Bore:	20mm
Kerf:	1.7mm
Max. Depth of Cut (0°):	53mm
Max. Depth of Cut (45°):	34mm
Mild Steel Plate (Max. Thickness):	3mm
Mild Steel Box Section (Max. Wall Thickness):	3mm
Product Dimensions:	255mm x 355mm x 235mm
Packaging Dimensions:	335mm x 265mm x 220mm
Product Weight:	4.3 kg
Packaged Weight:	5.1 kg
Sound Pressure Level LPA:	92,4dB(A) K:3dB(A)
Sound Power Level LWA:	103,4dB(A) K=3 dB(A)
Vibration - Main Handle (Sawing Wood):	Ah,w= 2,747m/s2
Vibration - Auxiliary Handle (Sawing Wood):	Ah,w= 2,619m/s2
Vibration - Main Handle (Sawing Metal):	Ah,M= 2,302m/s2
Vibration - Auxiliary Handle (Sawing Metal):	Ah,M= 2,239m/s2
Uncertainty K:	1,5m/s2

Items Supplied

14T Multi-Material TCT Blade

Hex Key (Blade Change)

Parallel Edge Guide

Dust Port Adapter

Dust Hose Connector

Compatible With

165mm Blades
